卫生级蝶阀

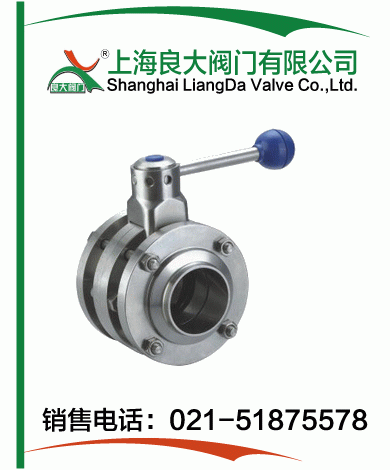

卫生级三片式蝶阀 |
产品名称: | 卫生级三片式蝶阀 | ||||||
型号: | WD61F | ||||||
口径: | DN25-200 | ||||||
压力: | 1.6-4.0MPa | ||||||
材质: | 不锈钢 | ||||||
|
|||||||
您正在浏览:【卫生级三片式蝶阀】 |
卫生级三片式蝶阀详细介绍
卫生级三片式蝶阀结构尺寸:
三片式蝶阀/3A
Size
O
D
Kxk
A
H
1/2"
78.0
12.7
8.0×8.0
100.0
39.0
3/4"
78.0
19.1
8.0×8.0
100.0
39.0
1"
78.0
25.4
8.0×8.0
100.0
39.0
1 1/2"
86.0
38.1
8.0×8.0
104.0
43.0
2"
102.0
50.8
10.0×10.0
104.0
51.0
2 1/2"
115.0
63.5
10.0×10.0
112.0
57.5
3"
128.0
76.8
10.0×10.0
112.0
64.0
4"
154.0
101.6
11.0×11.0
128.0
77.0
6"
215.0
152.4
11.0×11.0
180.0
107.5
8"
235.0
203.2
14.0×14.0
180.0
142.5
三片式蝶阀/DIN
Size
O
B
Kxk
A
H
DN15
78.0
18.0
8.0×8.0
100.0
39.0
DN20
78.0
22.0
8.0×8.0
100.0
39.0
DN25
78.0
28.0
8.0×8.0
100.0
39.0
DN32
86.0
34.0
8.0×8.0
100.0
39.0
DN40
90.0
40.0
8.0×8.0
100.0
45.0
DN50
106.0
52.0
10.0×10.0
104.0
51.0
DN65
124.0
70.0
10.0×10.0
112.0
60.0
DN80
139.0
85.0
11.0×11.0
120.0
67.0
DN100
159.0
104.0
11.0×11.0
128.0
77.0
DN125
185.0
129.0
11.0×11.0
150.0
92.5
DN150
215.0
154.0
11.0×11.0
180.0
107.5
三片式蝶阀ISO/IDF
Size
O
D
Kxk
A
H
φ19
78.0
19.0
8.0×8.0
100.0
39.0
φ25
78.0
25.4
8.0×8.0
100.0
39.0
φ32
78.0
31.5
8.0×8.0
100.0
39.0
φ38
86.0
38.1
8.0×8.0
100.0
43.0
φ45
90.0
45.0
8.0×8.0
100.0
45.0
φ51
102.0
50.8
10.0×10.0
104.0
51.0
φ57
106.0
57.0
10.0×10.0
104.0
53.0
φ63
115.0
63.5
10.0×10.0
112.0
57.5
φ76
128.0
78.2
10.0×10.0
112.0
64.0
φ89
139.0
89.0
11.0×11.0
120.0
69.5
φ102
154.0
101.6
11.0×11.0
128.0
77.0
φ108
159.0
108.0
11.0×11.0
128.0
79.5
φ138
185.0
133.0
11.0×11.0
160.0
92.5
φ159
215.0
159.0
11.0×11.0
160.0
107.5
φ219
285.0
219.0
14.0×14.0
160.0
142.5
三片式蝶阀/SMS
Size
O
D
Kxk
A
H
25
78.0
25.4
8.0×8.0
100.0
39.0
32
78.0
31.8
8.0×8.0
100.0
39.0
38
86.0
38.1
8.0×8.0
100.0
43.0
51
102.0
50.8
10.0×10.0
104.0
51.0
63
115.0
63.5
10.0×10.0
112.0
57.5
76
128.0
76.2
10.0×10.0
112.0
64.0
89
139.0
89.0
11.0×11.0
120.0
69.5
102
154.0
101.6
11.0×11.0
128.0
77.0
三片式蝶阀/3A | ||||||
Size | O | D | Kxk | A | H | |
1/2" | 78.0 | 12.7 | 8.0×8.0 | 100.0 | 39.0 | |
3/4" | 78.0 | 19.1 | 8.0×8.0 | 100.0 | 39.0 | |
1" | 78.0 | 25.4 | 8.0×8.0 | 100.0 | 39.0 | |
1 1/2" | 86.0 | 38.1 | 8.0×8.0 | 104.0 | 43.0 | |
2" | 102.0 | 50.8 | 10.0×10.0 | 104.0 | 51.0 | |
2 1/2" | 115.0 | 63.5 | 10.0×10.0 | 112.0 | 57.5 | |
3" | 128.0 | 76.8 | 10.0×10.0 | 112.0 | 64.0 | |
4" | 154.0 | 101.6 | 11.0×11.0 | 128.0 | 77.0 | |
6" | 215.0 | 152.4 | 11.0×11.0 | 180.0 | 107.5 | |
8" | 235.0 | 203.2 | 14.0×14.0 | 180.0 | 142.5 |
三片式蝶阀/DIN | ||||||
Size | O | B | Kxk | A | H | |
DN15 | 78.0 | 18.0 | 8.0×8.0 | 100.0 | 39.0 | |
DN20 | 78.0 | 22.0 | 8.0×8.0 | 100.0 | 39.0 | |
DN25 | 78.0 | 28.0 | 8.0×8.0 | 100.0 | 39.0 | |
DN32 | 86.0 | 34.0 | 8.0×8.0 | 100.0 | 39.0 | |
DN40 | 90.0 | 40.0 | 8.0×8.0 | 100.0 | 45.0 | |
DN50 | 106.0 | 52.0 | 10.0×10.0 | 104.0 | 51.0 | |
DN65 | 124.0 | 70.0 | 10.0×10.0 | 112.0 | 60.0 | |
DN80 | 139.0 | 85.0 | 11.0×11.0 | 120.0 | 67.0 | |
DN100 | 159.0 | 104.0 | 11.0×11.0 | 128.0 | 77.0 | |
DN125 | 185.0 | 129.0 | 11.0×11.0 | 150.0 | 92.5 | |
DN150 | 215.0 | 154.0 | 11.0×11.0 | 180.0 | 107.5 |
三片式蝶阀ISO/IDF | ||||||
Size | O | D | Kxk | A | H | |
φ19 | 78.0 | 19.0 | 8.0×8.0 | 100.0 | 39.0 | |
φ25 | 78.0 | 25.4 | 8.0×8.0 | 100.0 | 39.0 | |
φ32 | 78.0 | 31.5 | 8.0×8.0 | 100.0 | 39.0 | |
φ38 | 86.0 | 38.1 | 8.0×8.0 | 100.0 | 43.0 | |
φ45 | 90.0 | 45.0 | 8.0×8.0 | 100.0 | 45.0 | |
φ51 | 102.0 | 50.8 | 10.0×10.0 | 104.0 | 51.0 | |
φ57 | 106.0 | 57.0 | 10.0×10.0 | 104.0 | 53.0 | |
φ63 | 115.0 | 63.5 | 10.0×10.0 | 112.0 | 57.5 | |
φ76 | 128.0 | 78.2 | 10.0×10.0 | 112.0 | 64.0 | |
φ89 | 139.0 | 89.0 | 11.0×11.0 | 120.0 | 69.5 | |
φ102 | 154.0 | 101.6 | 11.0×11.0 | 128.0 | 77.0 | |
φ108 | 159.0 | 108.0 | 11.0×11.0 | 128.0 | 79.5 | |
φ138 | 185.0 | 133.0 | 11.0×11.0 | 160.0 | 92.5 | |
φ159 | 215.0 | 159.0 | 11.0×11.0 | 160.0 | 107.5 | |
φ219 | 285.0 | 219.0 | 14.0×14.0 | 160.0 | 142.5 |
三片式蝶阀/SMS | ||||||
Size | O | D | Kxk | A | H | |
25 | 78.0 | 25.4 | 8.0×8.0 | 100.0 | 39.0 | |
32 | 78.0 | 31.8 | 8.0×8.0 | 100.0 | 39.0 | |
38 | 86.0 | 38.1 | 8.0×8.0 | 100.0 | 43.0 | |
51 | 102.0 | 50.8 | 10.0×10.0 | 104.0 | 51.0 | |
63 | 115.0 | 63.5 | 10.0×10.0 | 112.0 | 57.5 | |
76 | 128.0 | 76.2 | 10.0×10.0 | 112.0 | 64.0 | |
89 | 139.0 | 89.0 | 11.0×11.0 | 120.0 | 69.5 | |
102 | 154.0 | 101.6 | 11.0×11.0 | 128.0 | 77.0 |
提示:本文中所有文字、数据、图片均只适用于参考,需要了解更详细的【卫生级三片式蝶阀】参数、选型、价格等请联系我们,我们将竭诚为您服务!
